This is not a course. It is a... Tip Sheet

COMPUTER SKILLS AND TIP SHEETS

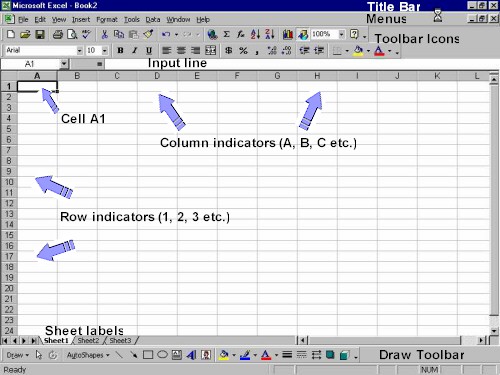

MS Excel 2000 - The Screen


If you have used the computer before you will be familiar with the Title Bar, Menus and Toolbar icons.

Click on the Menus (The words "File", "Edit", "View", "Insert" etc.) to pull down a list of menu options.

Move the mouse pointer  pointer.jpg (769 bytes) over the Toolbar icons to see a description of each icon pop up. For example, move the pointer over the "A" icon to the right of the second row:


These icon descriptions are summarised at the end of this page. Note that all the functions that the icons offer are also found amongst the pull-down menus.

The Input line displays the contents of any active cell. You do not use this input line to type data in the cell. To type data in a cell you just click on the cell and type the data. The input line is used to

  1. Edit cell contents once they have already been entered in the cell - click on the cell you want to edit, then click on the input line and edit as if you are using a word processor.
  2. Display formulas (the cell will display the value that results from the formula). For instance if the formula is =3+4, this formula will appear in the input line, while the value resulting from that formula (7) appears in the cell.


Rows are labelled with numbers (1, 2, 3 until 65 536)
Columns are labelled alphabetically (A, B, C until Z, then starting from AA, AB, AC etc. until IV)
Sheets - there are three sheets or equal size. These can be renamed.

The Draw toolbar offers a full range of drawing tools.

Summary of most important icons descriptions

Open
new blank
Workbook
attributes
Open
Workbook
Currency
43 becomes
R43.00
Save
Workbook
Percentage
.45 becomes
45%
Print
Decimal
43 becomes
43.00
Print
preview
Reduce
decimal
22.28 becomes
22.3
Spell check
Increase
decimal
22.3 becomes
22.28
Cut
Border line
options
Copy
Paste


Undo

Redo

Cell
Background
colour
Autosum
(Adds values
in a list)
Colour
options

click the

Sort
alphabetically
Sort
descending
Chart
wizard
Draw tools
Text
colour
